Adjustable Film Applicator, 100mm Film Coating Applicator Film Coater, with Digital Display, 0-3500μm Width, for Various Industries, Including Coating, Printing

Product specifications: - Manually apply high-concentration and viscosity liquids on a flat substrate. - Used to achieve uniform film thickness on a flat substrate. - This product is digitally displayed and can freely adjust the thickness of the coating material; accuracy: ±1%. - Widely applicable to paint proofing, cosmetics industry, glue and mucus, pharmaceutical industry, etc. Product name: Thin film applicator Frame material: aluminum Effective coating width: 100mm Coating accuracy: ±10μm Accuracy: ±2um Graduation value: 10um Measuring range: 0-3500um Packaging includes: Host*1

• ★ Parameters: Main manufacturing material: aluminum alloy; effective scraping width: 100mm; film thickness range: 0~3500μm; accuracy: ±2 microns. The blade is made of stainless steel and the edge is finely ground; the micrometer head can be controlled with an accuracy of 10 microns
• ★ Digital display adjustable applicator: mainly used for laboratory testing of paints, coatings, cosmetics, etc. Since the gap is adjustable, it can reduce the need for various fixed gap applicators

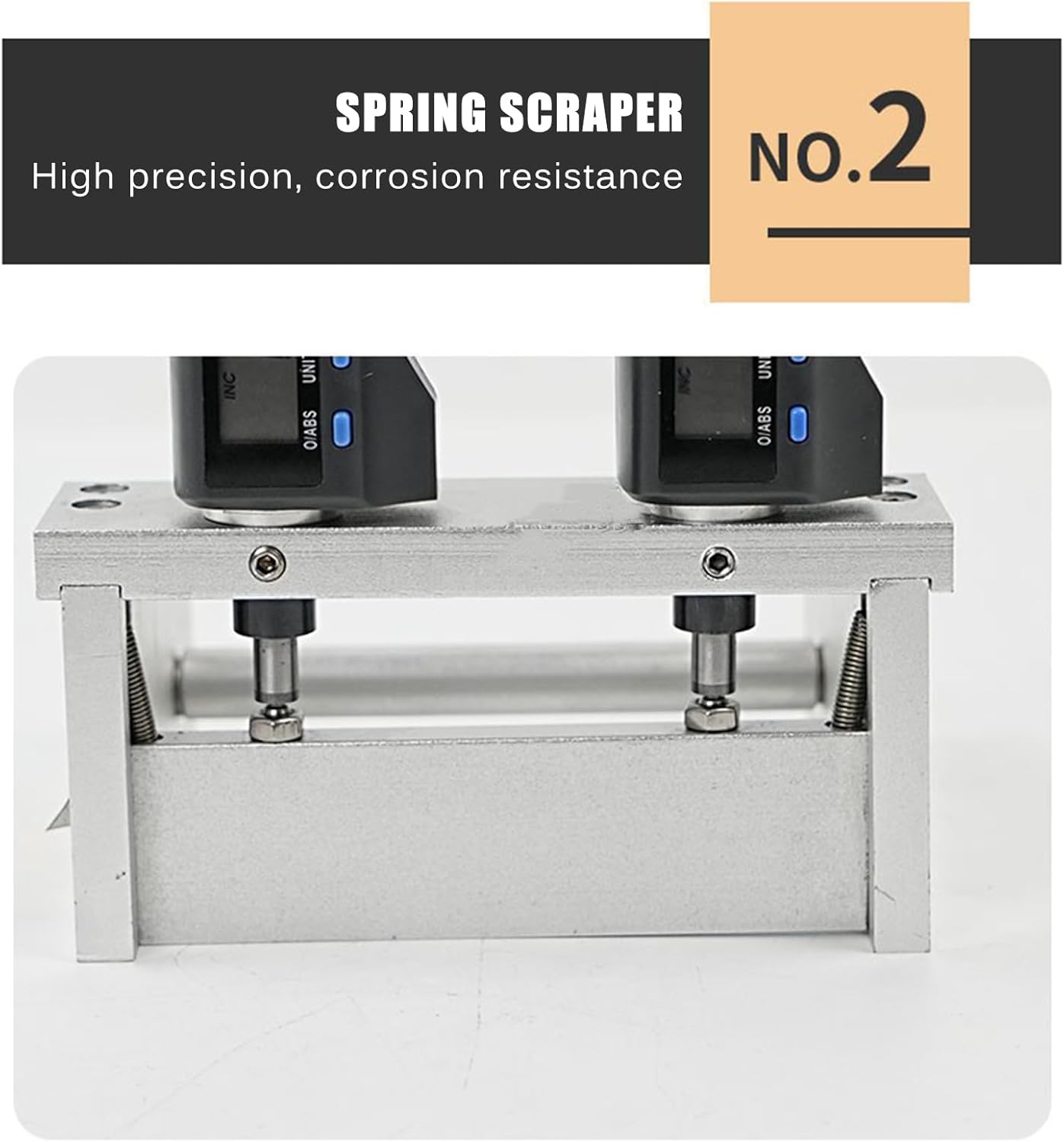

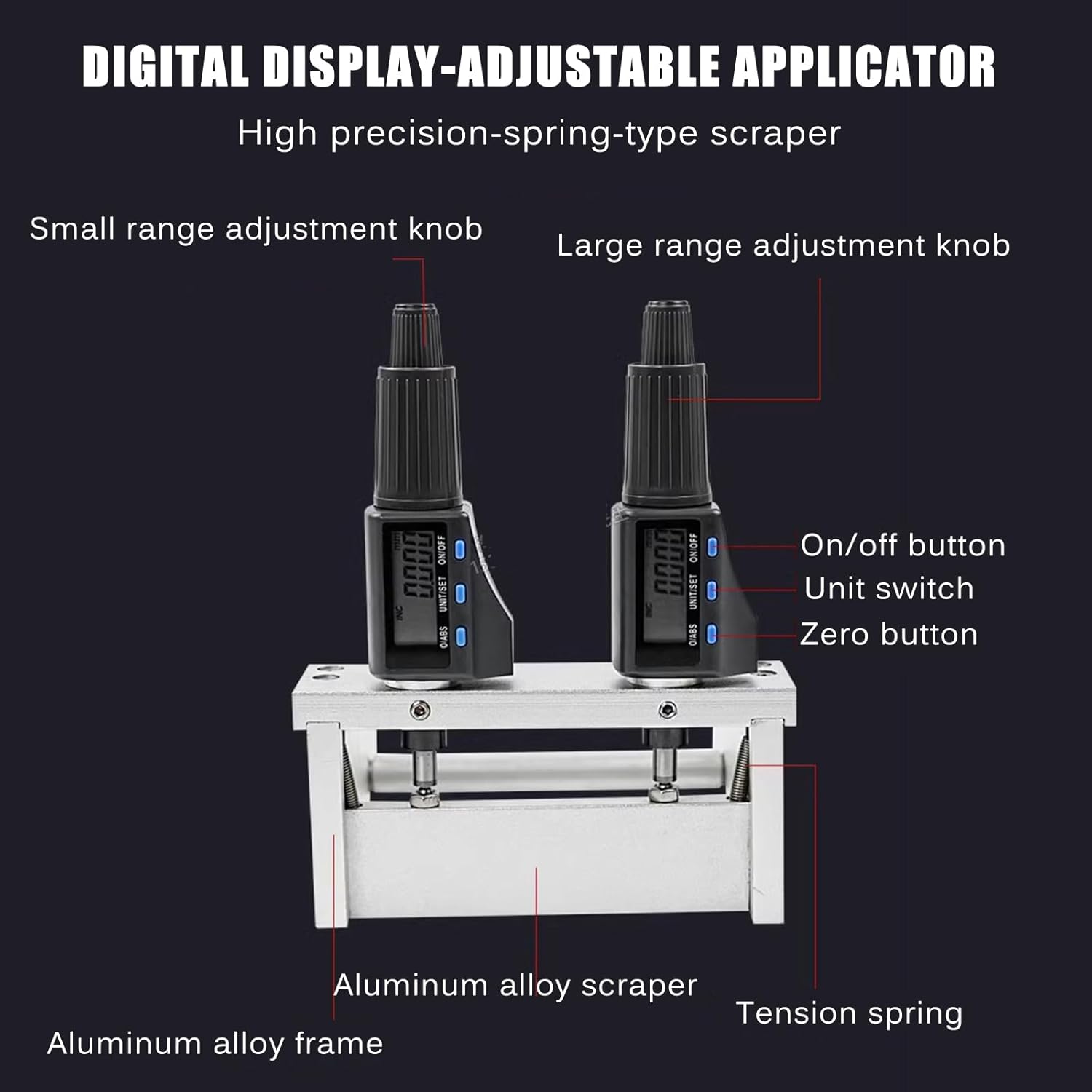

• ★ Adjustable applicator: an experimental product developed for evaluating and testing the subtle differences in film thickness. By adjusting the two precision differentiators above the preparation device, twisting the differentiator can adjust the scraper below in the up and down directions to control the gap, which is the thickness of the coating
• ★ Film applicator: with an extended edge that can gather the paint during the coating process, it can be solid, the gap can be set between 0 and 3500 microns, and the gap of the scraper can be adjusted in units of 10 microns
• ★ Widely used in: printing, paint, coatings, cosmetics, pharmaceuticals, adhesives, batteries and other scientific research industries. Applicable to various industries as test projects
